The XIZI UN-ES008 Commercial Escalator is engineered to meet both China’s GB16899-2011 and Europe’s EN115 safety standards, integrating advanced technology for superior performance. With its intelligent microprocessor-based control, high-strength truss design, and multi-layer safety systems, it ensures smooth, secure, and comfortable operation. Continuously refined for modern demands, it is ideal for commercial centers, hospitals, CBDs, industrial complexes, and large retail environments.
Step Width: 600/800/1000
Rated Speed: 0.5 m/s
Maximum Travel Height: ≤8000 mm
Angle of Inclination: 30°/35°

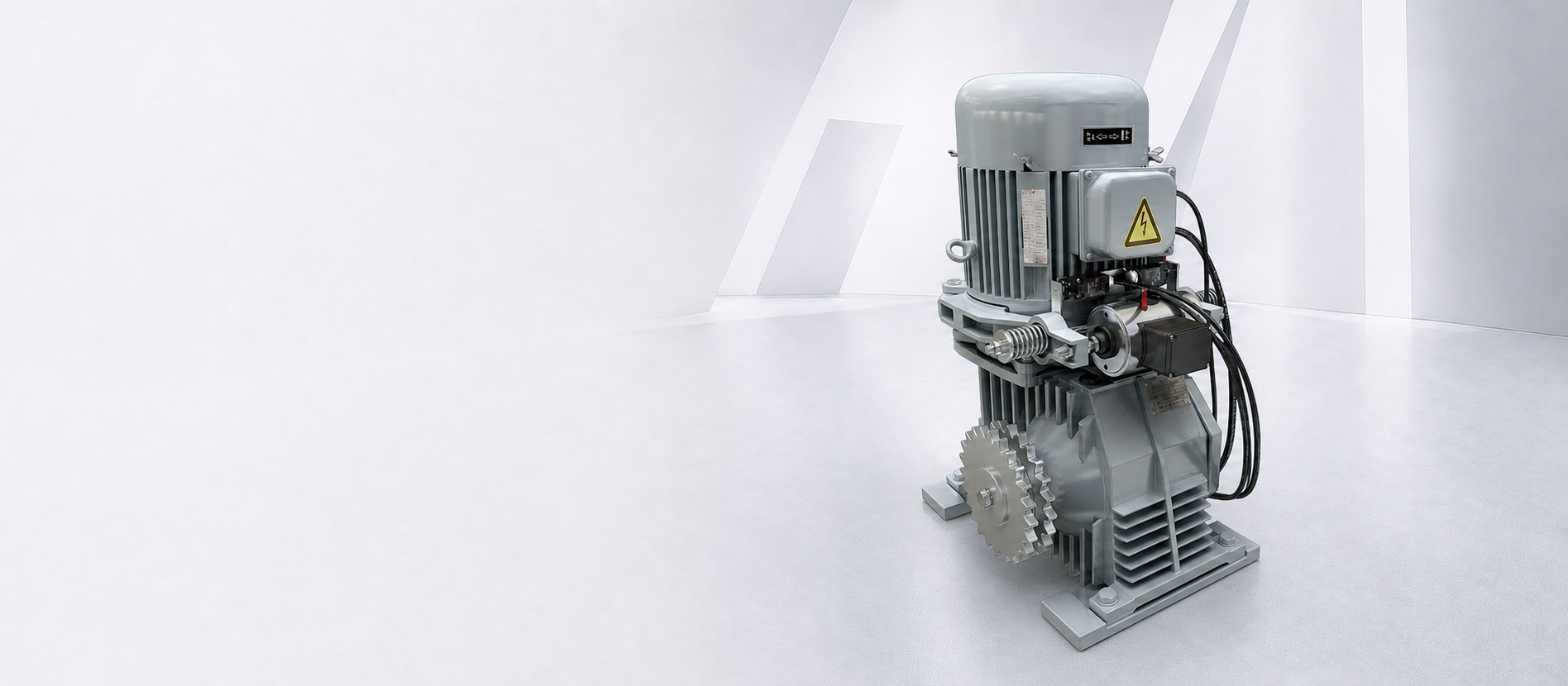

The drive unit is built using advanced global technologies and features a chain drive system for superior performance.
Our specialized engineering team is dedicated to excellence in design, building proven and unrivaled systems.
Compact, efficient, and powerful — all integrated into one superior system.
Advanced manufacturing ensures a long service life and dependable operation. The brake system includes break release detection, imported linings, and motor overheating protection for maximum safety and durability. Its built-in motor flywheel restricts access, offering high protection against external interference.
The drive unit is built using advanced global technologies and features a chain drive system for superior performance.
Our specialized engineering team is dedicated to excellence in design, building proven and unrivaled systems.
Compact, efficient, and powerful — all integrated into one superior system.
Advanced manufacturing ensures a long service life and dependable operation. The brake system includes break release detection, imported linings, and motor overheating protection for maximum safety and durability. Its built-in motor flywheel restricts access, offering high protection against external interference.

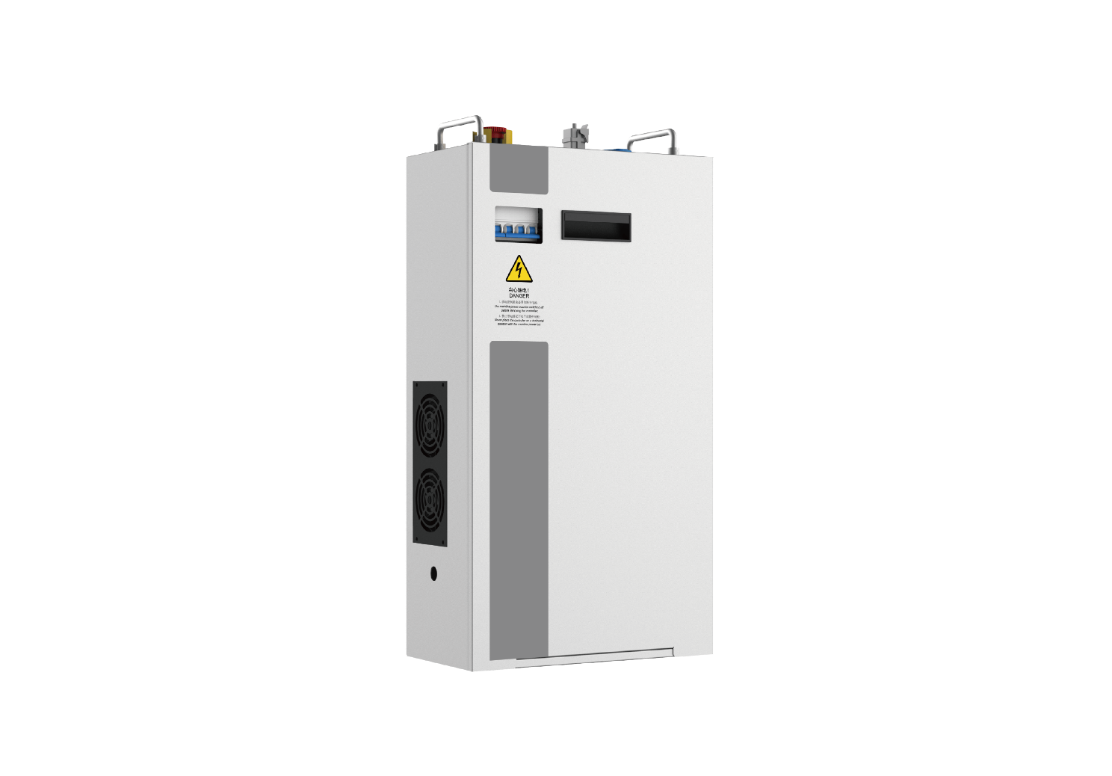

Equipped with an intelligent microprocessor-based control system and self-diagnostic fault display, it ensures reliable performance and effortless operation.
A network of safety switches, managed by the central microprocessor, are positioned across all key components of the escalator. This enables continuous, real-time monitoring of the entire system’s operational status.
In the event of a malfunction or potential safety issue, the system automatically cuts power, engages the brake, and displays the fault details clearly on the digital display. This allows technicians to quickly identify and resolve the issue, reducing downtime and ensuring efficient maintenance.

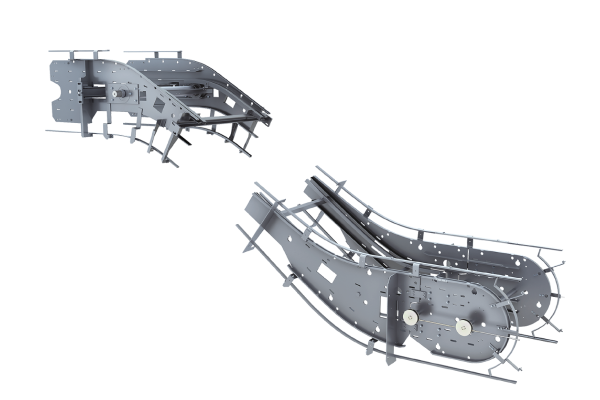

Featuring an integrated side panel assembly that delivers high-precision alignment, resulting in exceptionally smooth and stable operation.
The main guide rails applies a dual-side anti-derailment design, effectively preventing track deviation and guaranteeing stable, consistent step movement.

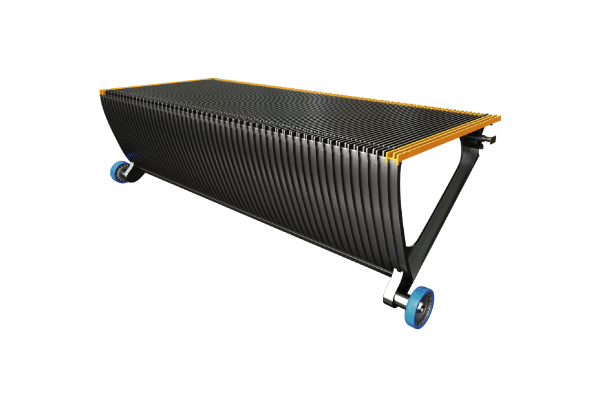

Manufactured from high-strength die-cast aluminum alloy, each step is rigorously tested to 20 million dynamic load cycles—significantly exceeding the national safety standards.

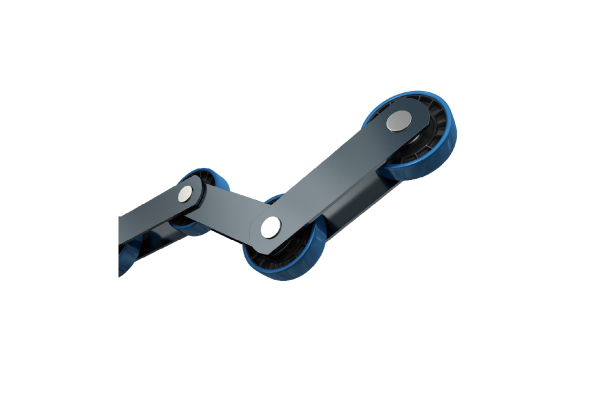

Engineered for heavy-duty performance, the high-strength steel step chain delivers reliable operation and an extended 70,000-hour service life.

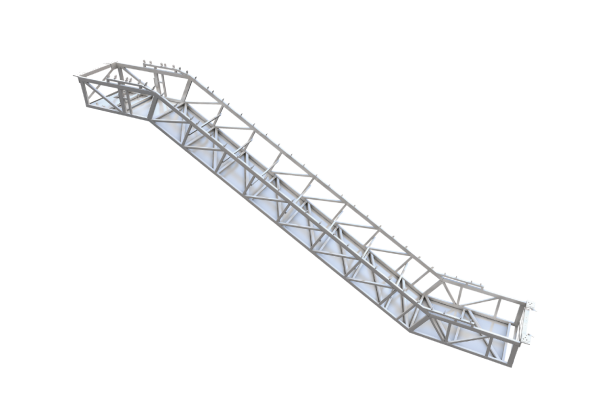

The robust welded truss is strength-verified for safety. Features anti-corrosion coating (indoor) or hot-dip galvanizing (outdoor). All welding complies with EN 1090 certification, reflecting world-leading craftsmanship.
